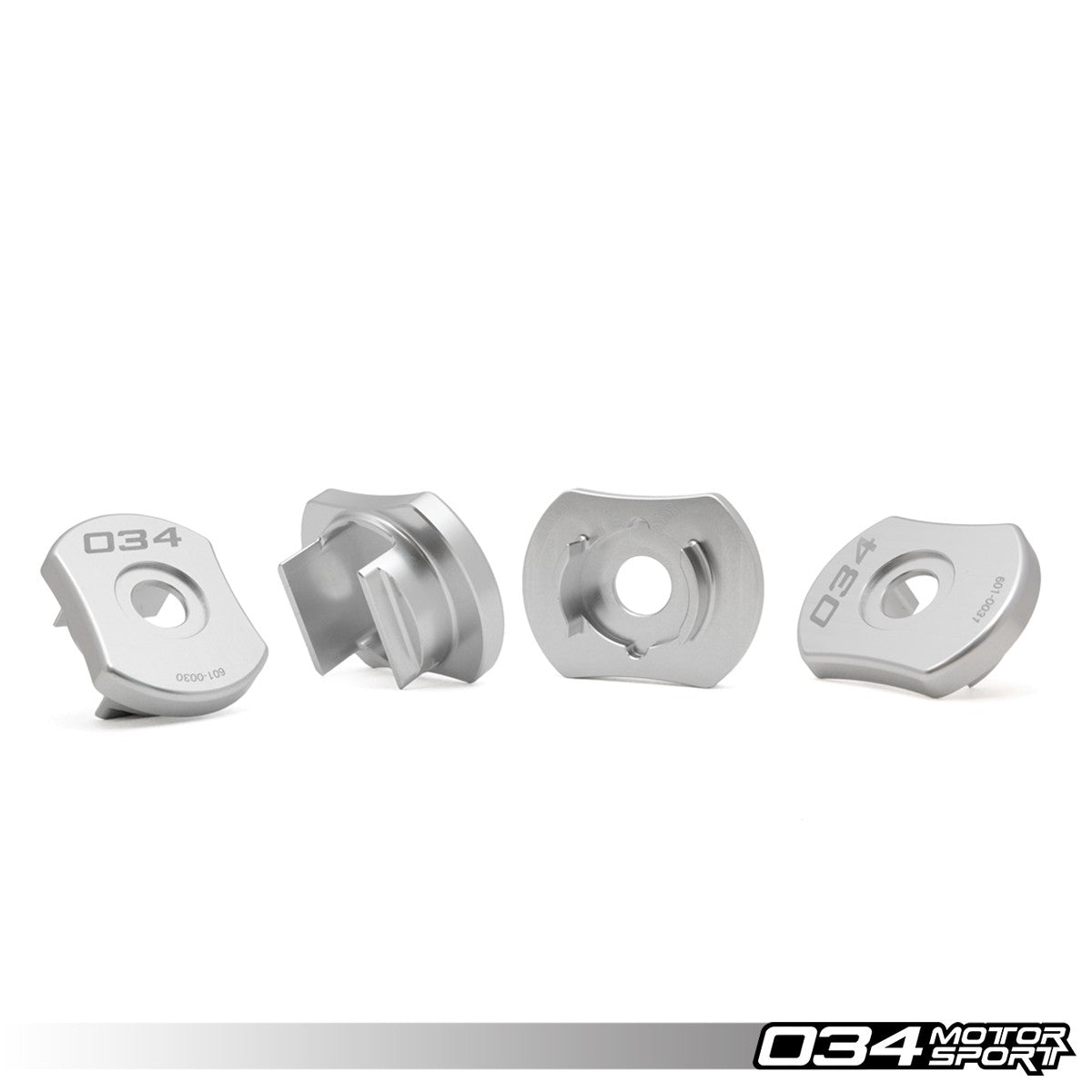

034 Motorsport BILLET ALUMINUM MQB REAR SUBFRAME INSERTS

034 Motorsport BILLET ALUMINUM MQB REAR SUBFRAME INSERTS is available from Montigenix in South Africa.

Product details

BILLET ALUMINUM MQB REAR SUBFRAME MOUNT INSERTS, 8V AUDI A3/S3/RS3 QUATTRO, MKIII AUDI TT/TTS QUATTRO, & MKVII VOLKSWAGEN GOLF R

034Motorsport is pleased to present Billet Aluminum MQB Rear Subframe Mount Inserts for the MkVII Volkswagen Golf R, 8V Audi A3/S3/RS3 Quattro, & MkIII TT/TTS Quattro!

MQB Audi/Volkswagen vehicles equipped with Haldex AWD use rubber rear subframe mounts which deflect under load, causing the rear end to feel vague and loose, as well as leading to less-than-optimal suspension geometry and increased understeer. These precision-machined billet aluminum inserts are designed to fill voids in the factory rear subframe mounts, and limit subframe movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. The result is a more refined, connected driving experience, as well as improved effectiveness of aftermarket rear sway bar upgrades and suspension components.

Designed to work in conjunction with the factory rubber mounts, this insert package was engineered using CAD software and thoroughly tested and refined to provide a significant improvement in handling performance and feel.

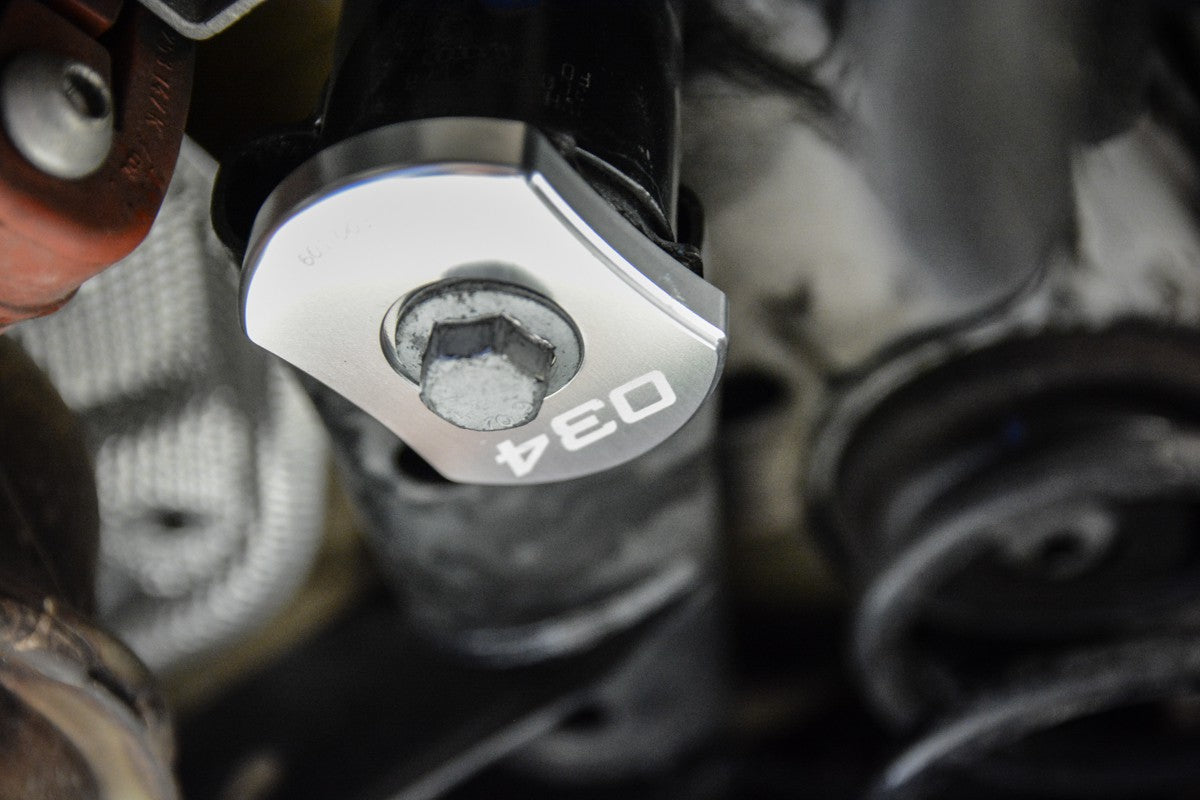

These inserts were tested extensively by 034Motorsport and independent Audi/Volkswagen enthusiasts before release on new MQB chassis AWD vehicles. Installation is very simple, can be performed in under an hour, and is completely reversible.

T6-6061 Billet Aluminum Construction

CNC-Machined In-House

Clear Anodized Finish for Durability

Engineered to Fill Voids In Factory Rear Subframe Mounts

Helps Maintain Proper Suspension Geometry When Cornering

Reduces Rear Subframe Movement During Launches & Acceleration

Improves Shifting Feel, Resulting in Crisper Shifts

Virtually No Additional NVH Transfer Inside Cabin

Easy, Straightforward Installation

034Motorsport Billet Aluminum MQB AWD Rear Subframe Insert – Front (Pair)

034Motorsport Billet Aluminum MQB AWD Rear Subframe Insert – Rear (Pair)

PDF

2015 – Present Audi A3/S3 Quattro (8V – MQB)

2017 – Present Audi RS3 Quattro (8V – MQB)

2016 – Present Audi TT/TTS Quattro (MkIII – MQB)

2015 – Present Volkswagen Golf R (MkVII – MQB)

Please Note: The factory rear subframe bolts are torque-to-yield bolts, and we recommend replacing them when installing these inserts. A new set of four OEM bolts is available separately above.

Part number: 034-601-0032
