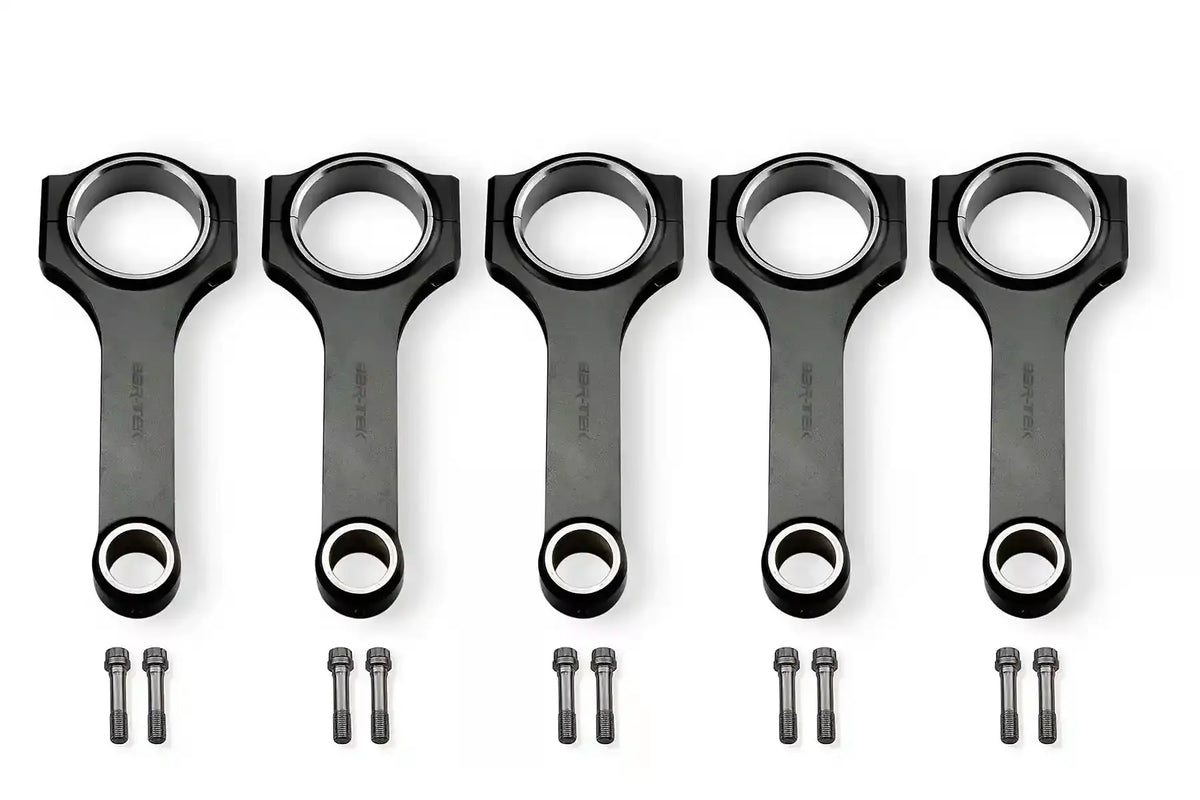

Bar-Tek H-Beam Conrods 22mm GP – 2.5L TFSI RS3 / TTRS

Bar-Tek H-Beam Conrods 22mm GP – 2.5L TFSI RS3 / TTRS is available from Montigenix in South Africa.

Product details

Perfectly suitable for extreme tuning, even up to 1000 HP and more.

The design of the H-shaft connecting rods ensures that they can withstand extreme pressure loads. They have an enormous stiffness and are therefore very stable. Although they are milled from the solid, they are also very light. This makes them perfect for motorsport, where every gram counts. With an additional bore (rifle drilled) through the skirt, the piston pins are optimally lubricated. We measure and angle them precisely so that you can be absolutely sure of the performance and safety of the conrod.

If you don’t have connecting rod bolts and conrod bearing shells yet, you should order them at the same time!

Features of the golden H-shaft conrods:

Riffle Drilled

22mm piston pin

high-strength milled from the solid

suitable for extreme power increases of 1000 HP

extremely light and very stable

Magnaflux inspected

5 pieces per set

Dimensions: 144 x 22 mm

Weight per conrod with screws only approx. 600 grams

With oil riser hole for piston pin lubrication

precisely angled and tested in our company

With ARP 2000 expansion screws 3/8″

Fitment

Part number: 21rs491
