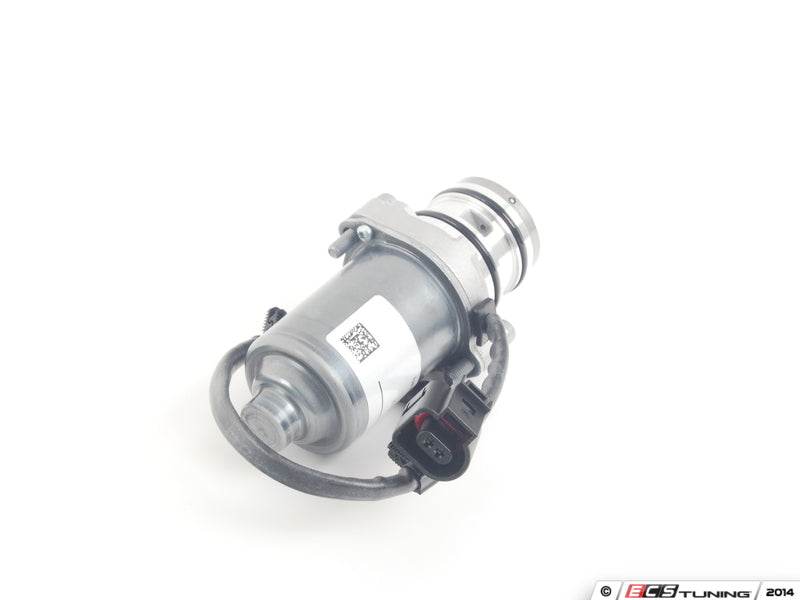

Borg Warner GenIV Haldex Feeder Pump kit

Borg Warner GenIV Haldex Feeder Pump kit is available from Montigenix in South Africa.

Product details

This is the most common fault with Generation 4 Haldex vehicles. The filter clogs up, it burns the pump out – sometimes they still sort of work if you power them up, but if the pump does not measure around 5 to 9 ohms then it has failed.

There is also filter which according to VW/Audi is “fitted for life/non service item” which gets completely blocked by around 45k to 80k miles. It does not exist on the VW/Audi parts system and cannot be ordered from the dealer. We stock and sell them here, and it needs to be replaced when replacing the pump.

Most common fault code 00448 – Haldex Clutch Pump (V181) – 011 – Open Circuit – Intermittent

Obviously you need to do your own diagnostics and testing, but other fault codes we’ve seen with pump and filter failure are:- 01155 – Clutch – 003 – Mechanical Failure – Intermittent 02248 – Valve for Controlling Clutch Operating Angle (N373) – 014 Defective – Intermittent

Fits Generation 4 Haldex Vehicles e.g. post/after 2008:- Audi TT, TTS, TTRS, A3, S3, Q3 VW Golf 4 Motion R32, GTi, R32, Tiguan, Sharan, Pasat Audi A3 S3 2009, 2010, 2011, 2012 Audi TT Coupe 2007, 2008, 2009, 2010 Audi TT Coupe 2.0L 2011, 2012 Audi TT Roadster 2007, 2008, 2009, 2010 Audi TT Roadster 2.0L 2011, 2012 Audi TTRS Coupe 2012 Audi TTRS Roadster 2012 VW Transporter Late Model VW Golf 6R

Part number: T119866
