GFB VTA for 1.2TSI and 1.4TSI

GFB VTA for 1.2TSI and 1.4TSI is available from Montigenix in South Africa.

Product details

The latest addition to the VTA range is a blow-off valve designed specifically for late-model Audi, VW, Skoda, and SEAT 1.2 and 1.4TSI models.

These engines come from the factory with no diverter valve of any kind, which results in turbo compressor surge every time the throttle is closed after boosting. The intake is acoustically tuned to suppress the fluttering sound of compressor surge, but it does not eliminate the effect of pressure pulses – that is what diverter and blow-off valves were originally designed to do.

The GFB VTA re-introduces a blow-off valve into the 1.2/1.4 TSI system, which eliminates compressor surge to protect the turbo, and delivers the signature blow-off “whoosh” when lifting off the throttle. Because these engines do not run a MAF sensor, there is no chance of adverse drivability or fuelling issues.

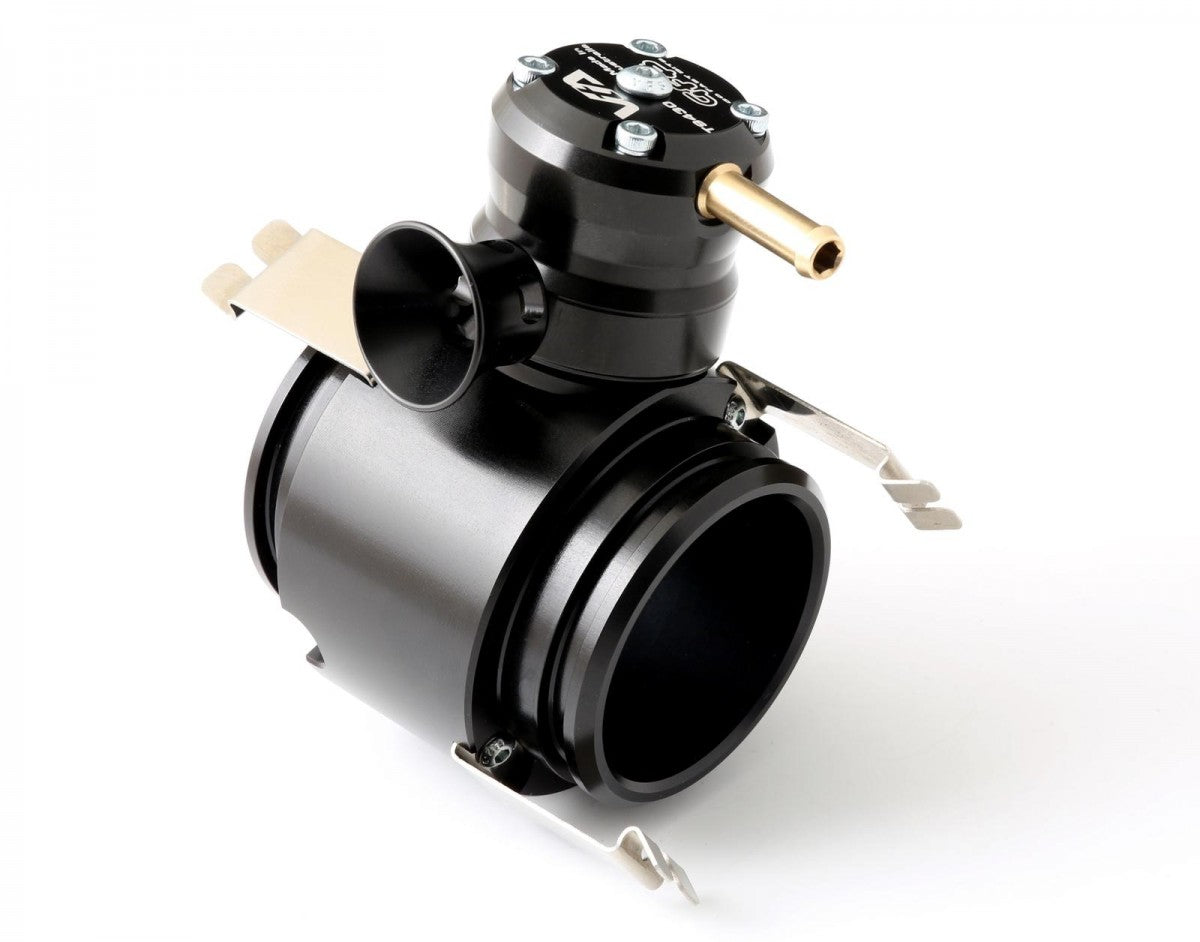

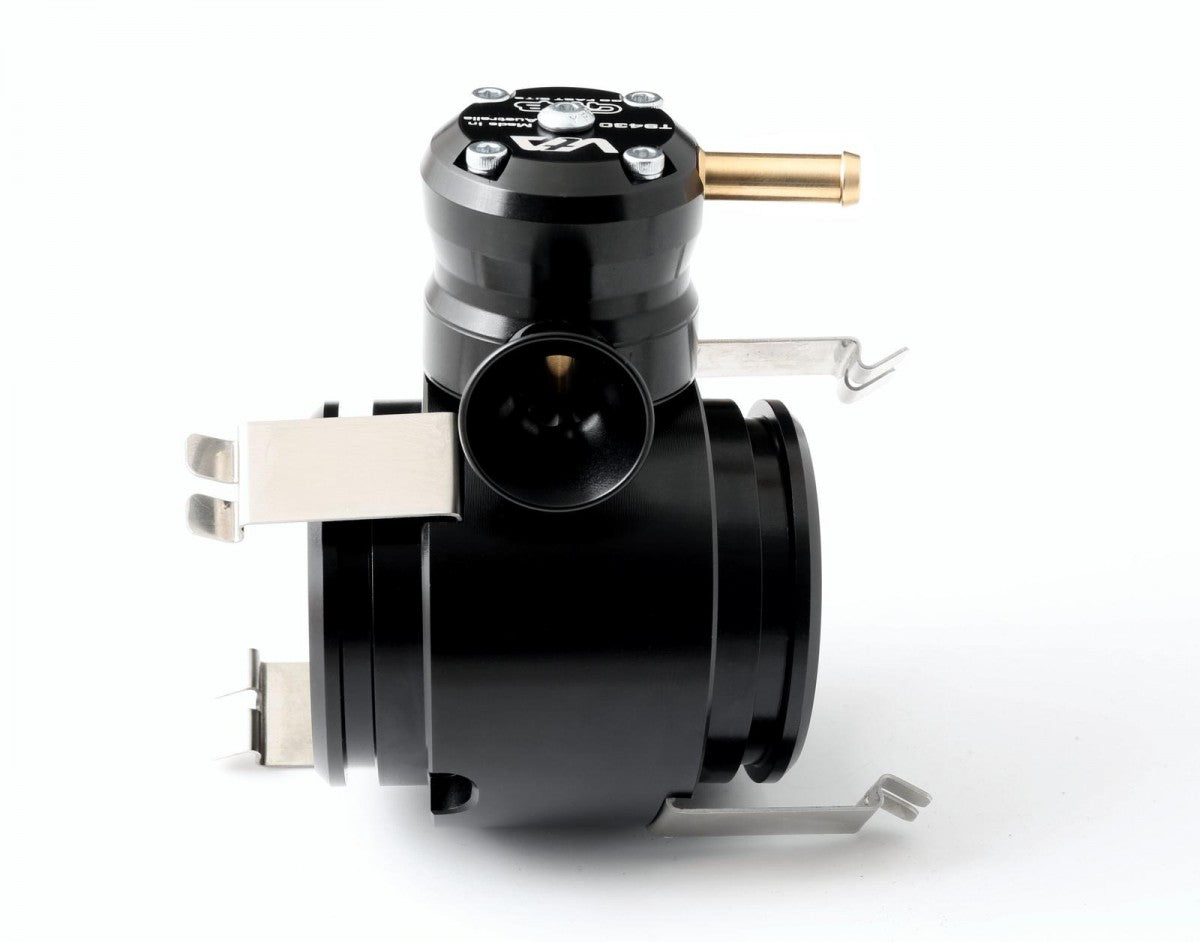

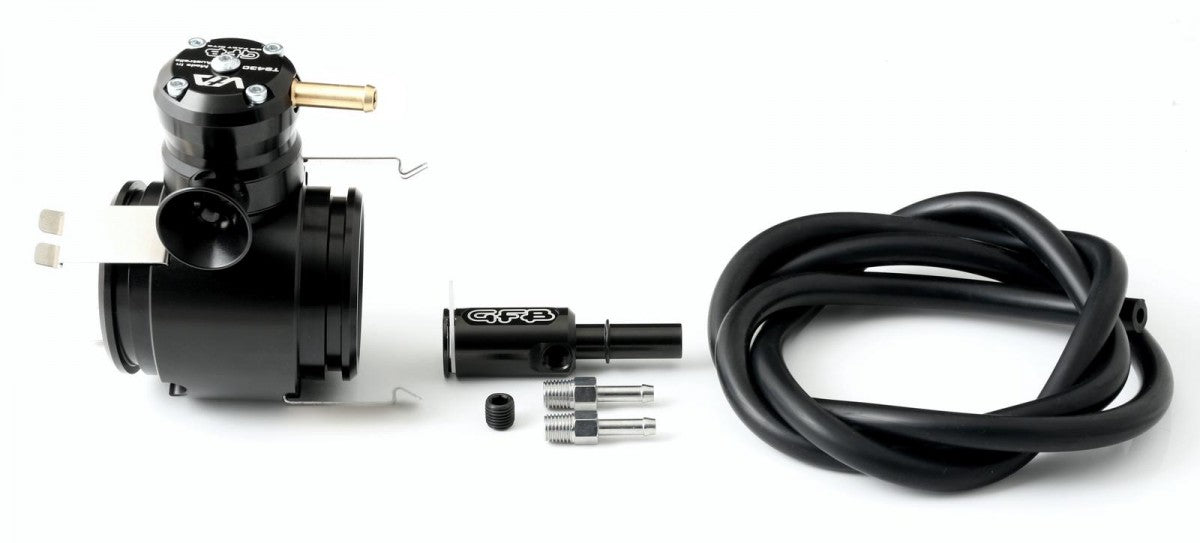

The VTA clips directly into the turbo’s charge piping, replacing a short plastic joiner with a billet CNC machined section onto which the VTA mounts. The kit also includes a boost tee and vacuum hose that clips onto one of the manifold vacuum ports to source a vacuum signal for the VTA valve. This boost tee has a second port that can be used to connect a boost gauge (not included), or plugged off if not required.

The whole kit can be fitted in minutes with no tools.

Key features:

TMS Technology for faster boost recovery on gearshift and during throttle modulation

Improved boost holding ability

Atmosphere venting for blow-off sound

Simple, direct bolt-on kits include everything you need to install

Manufactured in Australia in accordance with ISO 9001

Applications

VW Scirocco Mk3 2.0t FSI and 1.4 TSI (turbo only) 06-on Mk3 195kw Petrol Engine FWD Coupe 06/06-on

VW Scirocco Mk3 2.0t FSI and 1.4 TSI (turbo only) 06-on Mk3 154kw Petrol Engine FWD Coupe 06/06-on

VW Scirocco R Mk3 2.0t FSI (EA113) 06-13 Mk3 90kw Petrol Engine FWD Coupe 06/06-on

VW 1.2/1.4TSI 2014-on MK VII 5G1,BQ1,BE1,BE2 92kw Petrol Engine FWD Hatchback 05/14-on

VW 1.2/1.4TSI 2014-on SAA, SAH 92kw Petrol Engine FWD Van 05/15-on

VW 1.2/1.4TSI 2014-on MK VII BA5,BV5 110kw Petrol Engine FWD Wagon 05/14-on

VW 1.2/1.4TSI 2014-on AD1, BT1 110kw Petrol Engine FWD Closed Off-Road Vehicle 05/16-on

VW 1.2/1.4TSI 2014-on SAB, SAJ 92kw Petrol Engine FWD Wagon 05/15-on

VW 1.2/1.4TSI 2014-on MK VII BA5,BV5 92kw Petrol Engine FWD Wagon 05/14-on

VW 1.2/1.4TSI 2014-on 6R1, 6C1, 601, 603 66kw Petrol Engine FWD Hatchback 02/14-on

VW 1.2/1.4TSI 2014-on SAA, SAH 62kw Petrol Engine FWD Van 06/15-on

VW 1.2/1.4TSI 2014-on 6R1, 6C1, 601, 603 81kw Petrol Engine FWD Hatchback 01/14-on

VW 1.2/1.4TSI 2014-on MK VII 5G1,BQ1,BE1,BE2 110kw Petrol Engine FWD Hatchback 05/14-on

AUDI 1.2/1.4 TFSI/TSI 2013-on 8V7, 8VE 110kw Petrol Engine FWD Convertible 05/14-on

AUDI 1.2/1.4 TFSI/TSI 2013-on GAB 110kw Petrol Engine FWD Closed Off-Road Vehicle 06/16-on

AUDI 1.2/1.4 TFSI/TSI 2013-on 8V1, 8VK 110kw Petrol Engine FWD Hatchback 05/14-on

AUDI 1.2/1.4 TFSI/TSI 2013-on 8V1, 8VK 77kw Petrol Engine FWD Hatchback 02/13-on

AUDI 1.2/1.4 TFSI/TSI 2013-on 8VA, 8VF 92kw Petrol Engine FWD Hatchback 05/14-on

AUDI 1.2/1.4 TFSI/TSI 2013-on 8VS, 8VM 110kw Petrol Engine FWD Sedan 05/14-on

AUDI 1.2/1.4 TFSI/TSI 2013-on 8V1, 8VK 92kw Petrol Engine FWD Hatchback 05/14-on

AUDI 1.2/1.4 TFSI/TSI 2013-on 8X1, 8XK 92kw Petrol Engine FWD Hatchback 11/14-10/18

AUDI 1.2/1.4 TFSI/TSI 2013-on 8VA, 8VF 110kw Hybrid FWD Hatchback 05/14-on

AUDI 1.2/1.4 TFSI/TSI 2013-on 8XA, 8XF 92kw Petrol Engine FWD Hatchback 11/14-10/18

AUDI 1.2/1.4 TFSI/TSI 2013-on 8VA, 8VF 110kw Petrol Engine FWD Hatchback 05/14-on

AUDI 1.2/1.4 TFSI/TSI 2013-on 8UB, 8UG 110kw Petrol Engine FWD Closed Off-Road Vehicle 10/13-on

Part number: T9430
