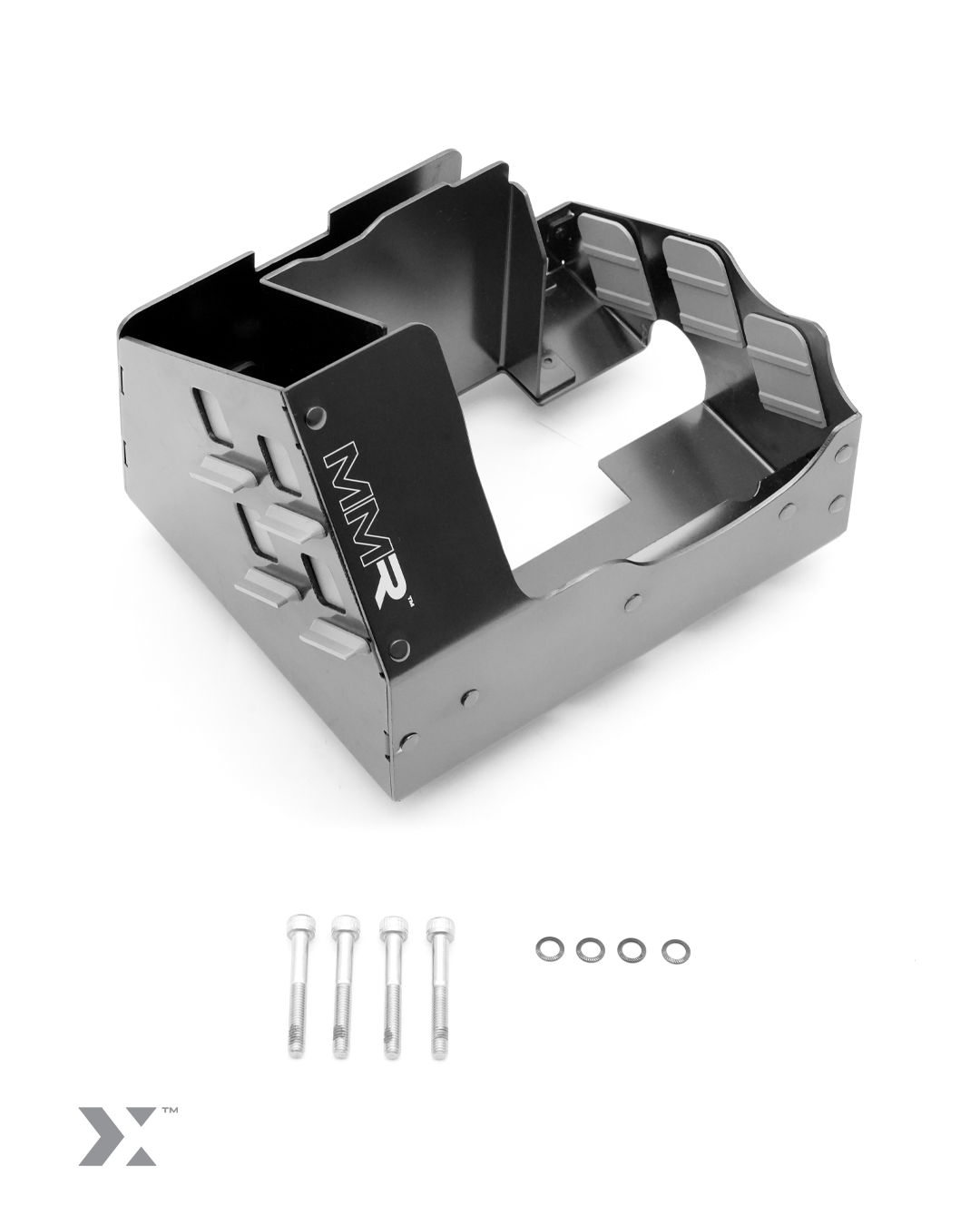

MMX Performance N55 Sump Baffle

MMX Performance N55 Sump Baffle is available from Montigenix in South Africa.

Product details

If you’re ever planning to use your car on track, or even particularly hard road driving, this really is an essential upgrade. Total engine failure is a very real possibility if not. Ask us how we know….!

The problem is especially pronounced under hard braking, when the oil pools at the front of the oil pan under the lateral g-force, allowing the pick-up to run dry. Even a fraction of a second of no oil feed can be enough to do lasting damage to your engine, any longer and it’s almost certain to lead to engine failure. And that’s where this Baffled Sump comes in.

The MMR Performance Baffled Sump has been extensively engineered from the ground-up to provide effective oil control, reducing surge and maintaining a more constant oil pressure; it’s the ultimate bolt-in solution available to protect your engine’s longevity.

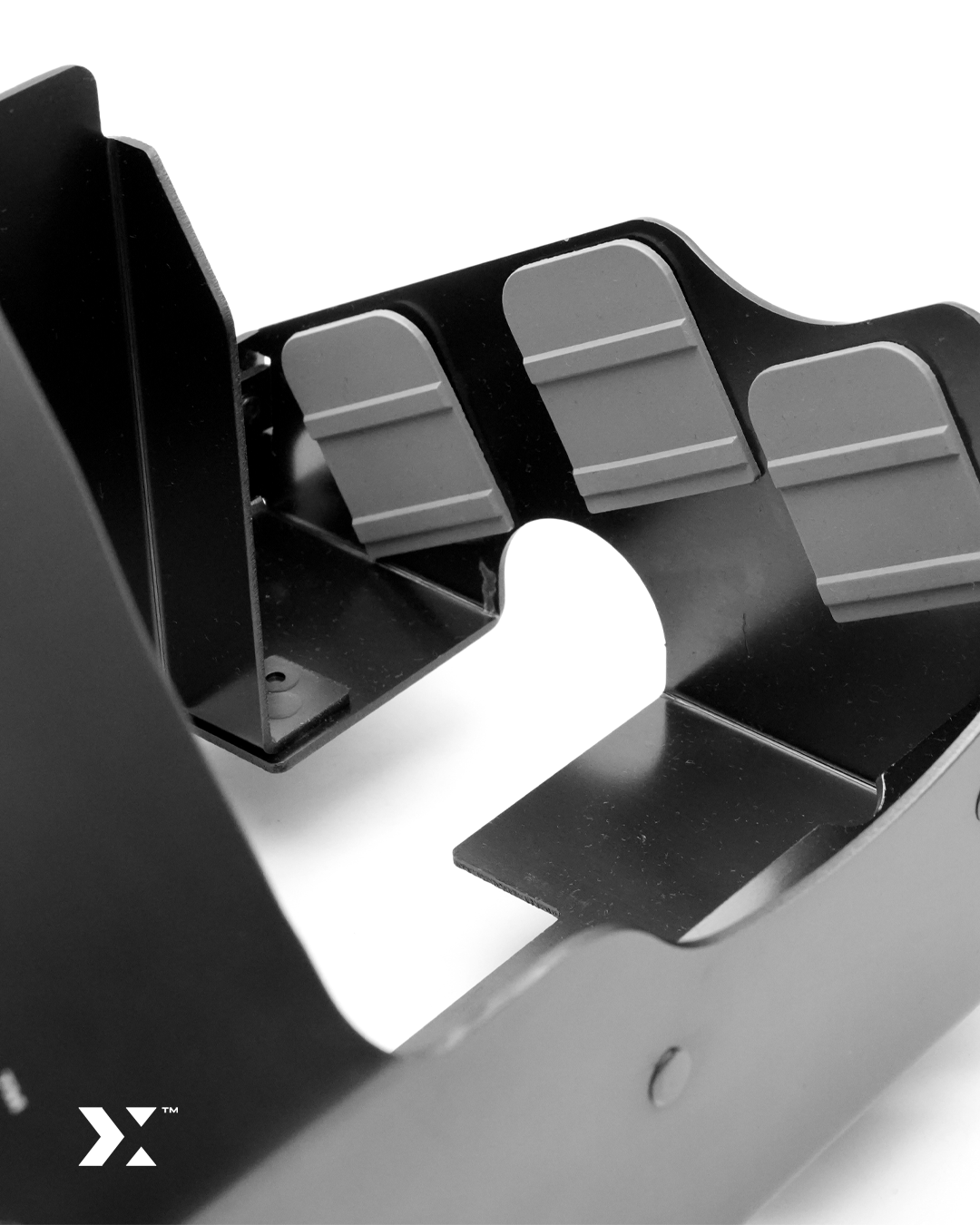

Featuring a total of 7 sophisticated one-way oil control flaps and specific baffling, the T-6061 anodised MMR sump baffle has been tested over thousands of miles of track and road use where the data we collected has proven its effectiveness, plus highlighted that it’s baffles correct the worst surge problems under hard braking.

Unlike other solutions available that require a plate to be welded in, the MMR solution is simply bolted into place making the addition of the baffle considerably easier and more accessible to install.

Fitment really is an absolutely essential insurance policy for any hard-driven N55 car.

Note: For reference, normal idling pressure when warm is 1.5 bar.

2013 – 2020

2011 – 2019

NOTE: Does not fit x-Drive Models.

Part number: MMR20-0501

Manufacturer compatibility check

N55-powered F2x/F3x M135i, M235i, 335i and 435i only. Check engine code; not a general B58 or S55 application.

View MMX application details.
