MMX Stud & Nut Kit | BMW & Mini | 70mm Tapered Seat

MMX Stud & Nut Kit | BMW & Mini | 70mm Tapered Seat is available from Montigenix in South Africa.

Product details

The MMR Performance Stud & Nut Kit gives a stronger fixing method than using the original wheel bolts. Plus they’re a much quicker method to swap wheels for motorsport/track use as well. For all cars with M14x1.25 nuts – from BMW F&G-Series and Mini F56 onwards.

Converting your car to our Stud & Nut Kit is a simple, reversible upgrade that will speed up your wheel changes.

Our Stud & Nut Kit also allow for the safe use of different spacer size setups without the risk of running out of bolt threads.

Beautiful midnight-black gloss anodised finish on the nuts will smarten up your car’s looks as well as its practicality.

Both conical and ball seat lug nuts are available to suit either factory or aftermarket wheels.

70mm Stud: No spacers, or up to 10mm spacer

80mm Stud: Spacers between 10mm to 20mm

We also offer two different nut types, depending on what type of wheels you are running: Ball Seat nuts or Conical Seat nuts.

Please check which type your wheels require, it’s important to get it right! Note that most OEM wheels use the Conical Seat nuts.

Stronger Fixing

M14 x 1.25 High Tensile Steel Motorsport Studs and larger anodised Wheel Nuts exceed the strength of the factory bolts for ultimate strength and safety.

Quick Wheel Changes

Stud and Nut kits are suited to any car that sees track use with regular wheel swaps. The studs really help to speed things up when you are trackside.

Easy Installation

These studs screw in place of your original wheel bolts with allen drive inserts to make installation a breeze. Plus easily removed in future.

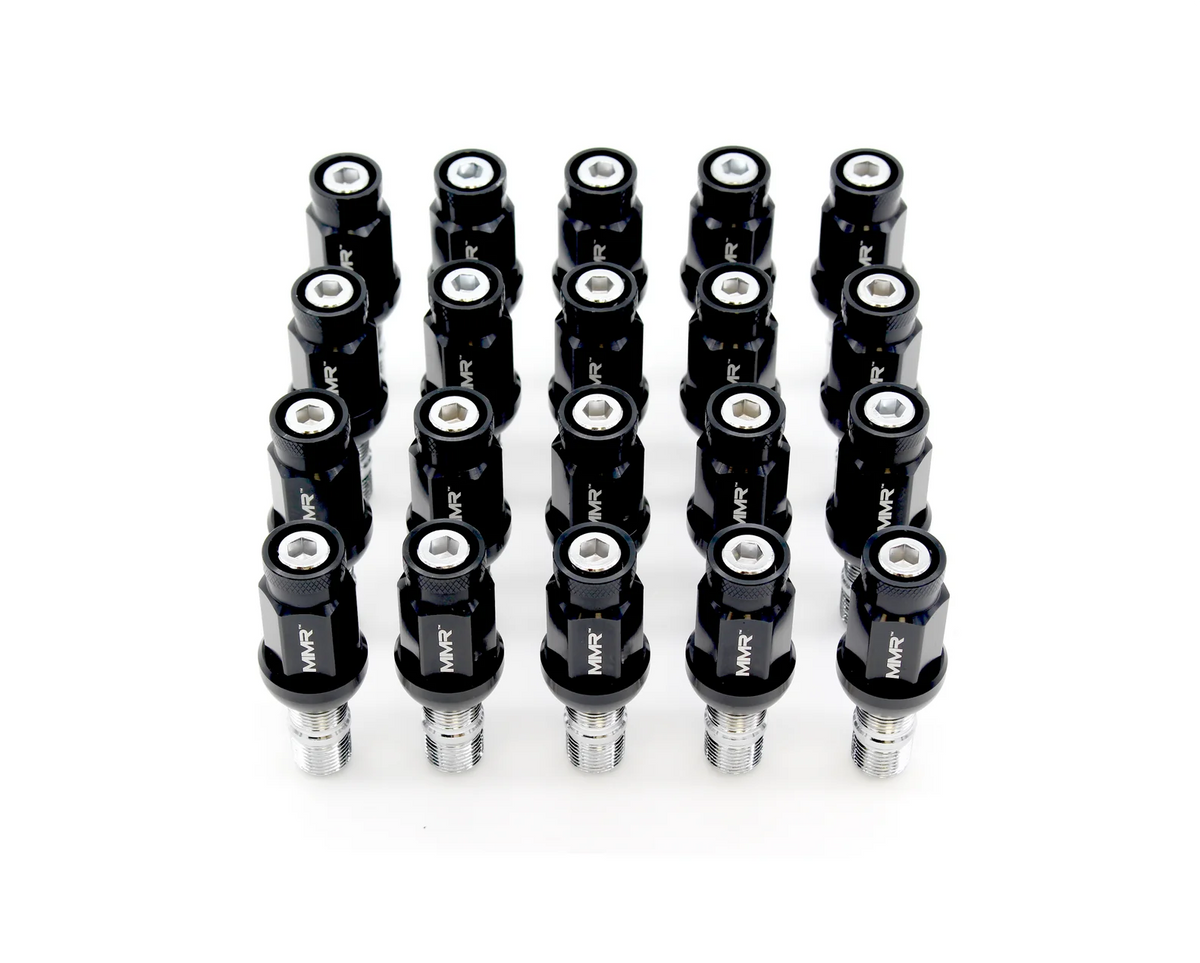

Precision engineered; for perfect performance!

M14 x 1.25 heat treated high carbon steel stud with chrome plated finish

Lightweight M14 x 1.25 7000-series aluminium open-ended nuts with gloss anodised nuts

Internal 6mm allen stud drive for accurate fixations

Knurled outer collar for much easier finger grip

8mm of unthreaded stud shank for brake disc clearance

Oversize 19mm nuts – greater surface area for contact & ease of use

Thread length (Nut Side): 50mm

Overall stud length: 70mm

Thread length (Nut Side): 60 mm

Overall stud length: 80mm

IMPORTANT NOTES:

Max Vehicle Weight 2500KG

This is not a ‘Locking’ or Security solution

As with all anodised finishes, do not clean these nuts with aggressive acidic or alkaline cleaners otherwise the finish will be damaged.​

Use only pH balanced cleaners (ie, non-acid, non-alkaline, non-solvents). Never use ANY type of wheel cleaner or any chemicals including abrasive compounds on the nuts. We recommend washing with water and mild soap. We advise against using commercial carwashes who use aggressive chemicals such as TFR.

Multiple fitments for BMW and MINI. All vehicles with M14 x 1.25 studs:

Key models:

All BMW Fxx models 2011-2017

All BMW Gxx models 2018+

All Mini R56 models 2007-2014

All Mini F56 models 2014+

Part number: MMR37-1501-70T
