Visconti Tuning A90 / A91 Supra Sequential Port Injection Kit

What’s included:

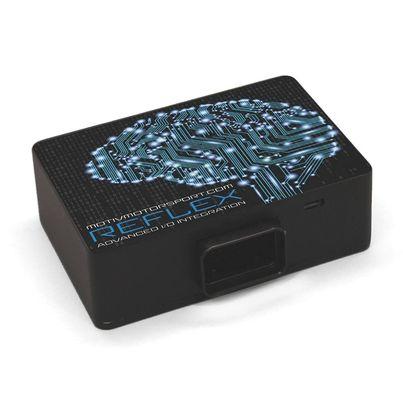

• MOTIV RE|FLEX with Visconti Firmware

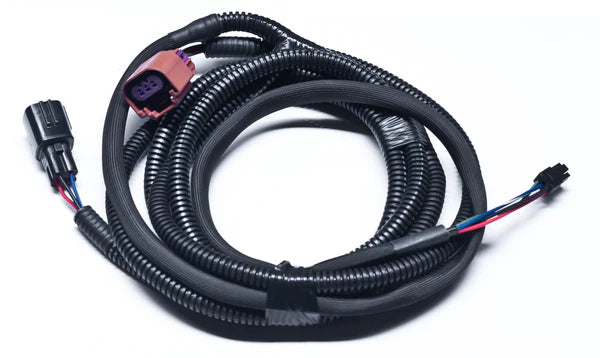

• Visconti Plug & Play Sequential Injector Harness
• Visconti Plug & Play Controller Harness
• Visconti Plug & Play Engine Integration Harness
• Visconti Flex Fuel Port Injection Fitting
• Fuel Pressure Sensor (150PSI)

What advantages does this kit have over other solutions:

• 100% Plug and Play Wiring Harness
• 100% Controlled over CANBUS
• Allows for true Flex Fuel
• Installs in 4HRS
• Easy to uninstall, no wires to repair or cut.

Requirements:

• EcuTek RaceRom
• Visconti Flex Fuel Kit
• Port Injection Rail Kit + Forge or FTP Charge Pipe

Visconti Tuning is proud to announce several new advancements for the B58 Toyota Supra platform. The latest release is our Plug & Play Sequential port injection kit that is completely controlled over CANBUS. This kit also has the ability to drive more than one PWM output for a secondary fuel pump, externally gated boost control, methanol or nitrous.

This kit will enable the ECM to run true flex fuel even when port injection is added. Other popular systems don’t have the ability to adjust fuel volume proportional to the ethanol content. This eliminates the need to change the port injection tune when running different ethanol blends.

By driving the port injection through the factory ECM, the system has the ability to properly control fuel volume during decel to prevent over fueling.

With the fuel pressure monitoring the ECM will be able to compensate injector pulse width for when your low pressure fuel system starts to run out of pump. Your tuner can also setup fail safes with-in EcuTek RaceRom to limit power output when these fuel system limits appear.

We will provide an ‘EcuTek Diff File’ which will contain all the settings your tuner will need to get RaceRom configured for the controller. This can easily be done to existing tunes that already have RaceRom. This still requires custom tuning but will provide a great starting point for this advanced CANBUS integration.

Additional Information:

• This port injection wiring kit requires the Visconti Flex Fuel Kit harness, it will not work with other kits that are similar.

• This is designed to replace the existing Zeitronix CANBUS controller found in the Visconti Flex Fuel Kit. If you have a ethanol display and would like to keep that please email john@vtune.us and will make that happen.

• If you already have a Flex Fuel enabled tune you will not be able to switch out the CANBUS hardware without getting a updated tune file from your tuner.

Availability and delivery

Supplied to order. Supplier availability is subject to confirmation. Shipping is calculated at checkout.
