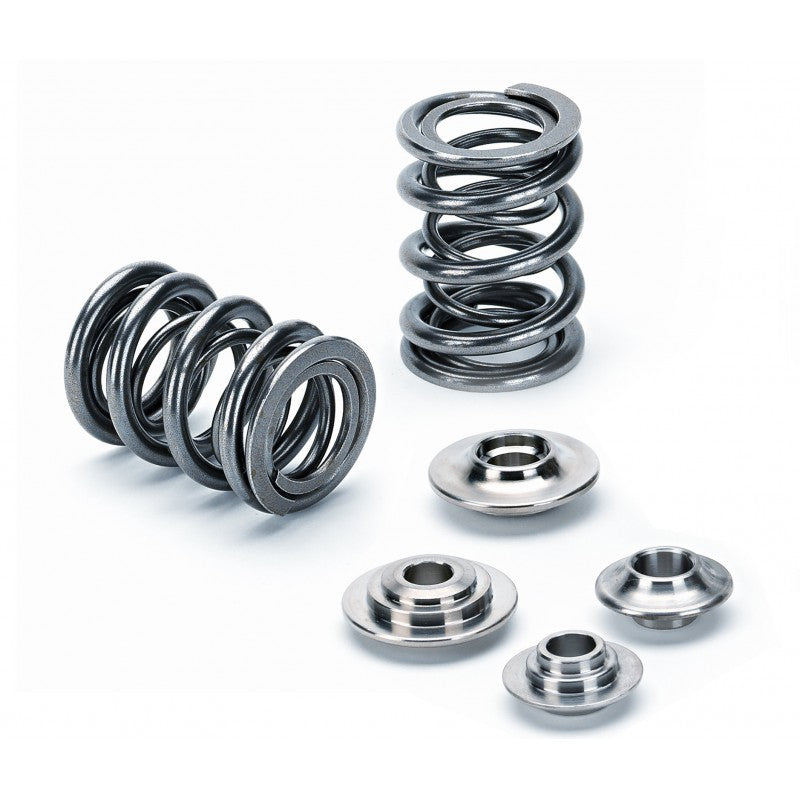

Supertech Valve Spring Kit for VW TFSI / TSI (INCL Retainers)
Supertech Valve Spring Kit for VW TFSI / TSI (INCL Retainers) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Supertech Valve Spring Kit for VW TFSI / TSI (INCL Retainers) is available from Montigenix in South Africa.
Product details
Spring data: Seat pressure – 73lbs @ 38.60mm (intake), 85lbs @ 37.20mm (exhaust) Open (lift) pressure – 178lbs @ 10mm (intake), 190lbs @ 10mm (exhaust) Max lift – 12.50mm (intake), 11.00mm (exhaust) Spring coil bind – 24.90mm Rate – 10.50lbs/mm Spring outer diameter – 24.00mm Spring inner diameter – 16.50mm
Set includes: Single springs – 16 pcs. SPR-A2416-5 Titanium retainers – 16 pcs. RET-A2416-N2
Part number: sptSPRK-A2416-N2
Supertech Valve Spring Kit for VW TFSI / TSI (INCL Retainers)
